Battery Cell Sorting Machine
Automatic sorting and grading equipment for cylindrical lithium battery cells.
The Battery Cell Sorting Machine is designed for automatic voltage, internal resistance and capacity grading of cylindrical lithium battery cells. It helps improve battery pack consistency, production efficiency and quality control.
The Battery Cell Sorting Machine consists of a feeding mechanism, a barcode scanning mechanism, a testing mechanism, a transfer mechanism, and a cell buffer channel.
Equipment parameters for each sorting channel are configured via host computer software. A high-speed barcode scanner reads the QR code on each cell, while the tester measures the cell’s voltage and internal resistance. The system then binds the test data to the corresponding QR code, and a sorting robotic arm with suction cups transfers each cell to its designated channel — 6 OK channels and 1 NG channel — achieving fully automatic battery sorting.
Key Features
- Automatic Cell Sorting
- Voltage & Internal Resistance Testing
- High Sorting Accuracy
- Data Recording and Traceability
Applications
Drone battery packs
Energy storage battery packs
E-bike battery packs
Cylindrical lithium battery pack production
Work Process

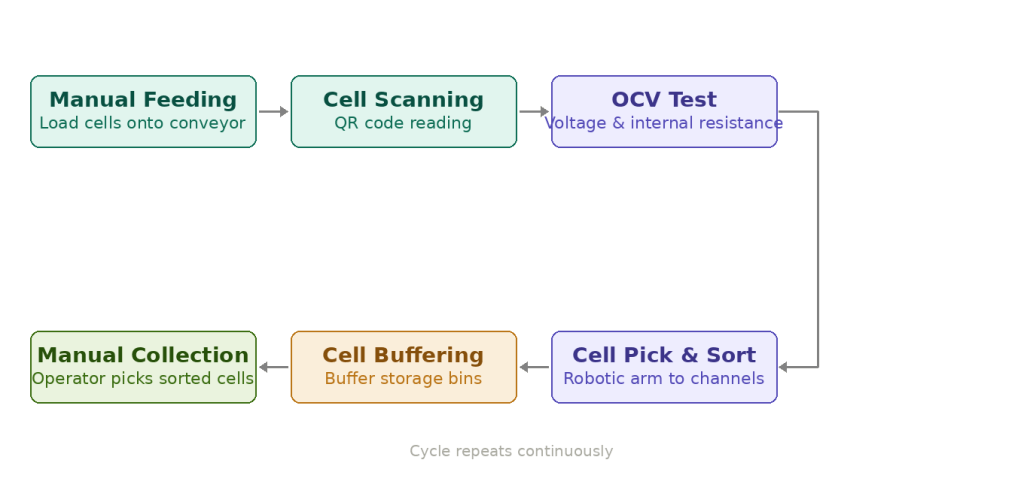

Operators first place lithium battery cells onto the feeding conveyor, which transports them one by one to the barcode scanning station for QR code reading. A linkage mechanism then transfers the cells to the testing station, where voltage and internal resistance are measured. The system binds the test data to the corresponding QR code, and a robotic arm with suction cups transfers each cell to its designated buffer storage bin. This cycle repeats continuously.
Specification
| Weight | About 500 Kg |
| Size | 3000*1500*2100mm(L*W*H) |
| Input Voltage | AC220V 50Hz |
| Power | 1200 W |
| Operating Temperature | 0°C–50°C; free from contamination and strong electromagnetic interference. |
| Air Source Requirements | 0.5–1.0 MPa Plant Air Supply; 0.5–0.7 MPa Compressed Air |
| Channel Number | 7 ( 6 Ok+ 1 NG) |
| Internal Resistance Measurement Accuracy | Range: 0–60 mΩ, ±0.5% rdg, Display resolution is 0.1mΩ |
| Voltage Measurement Accuracy | Range: 0–60 V; Basic Accuracy: ±0.015% rdg; Resolution: 0.1 mV |
| NG Equipment Failure Rate | ≤0.1% (Faults caused solely by the equipment) |
| Equipment efficiency | 40-50 PPM |
| Display | Dell |
| Control system | PC Industrial Computer (Embedded system) |
